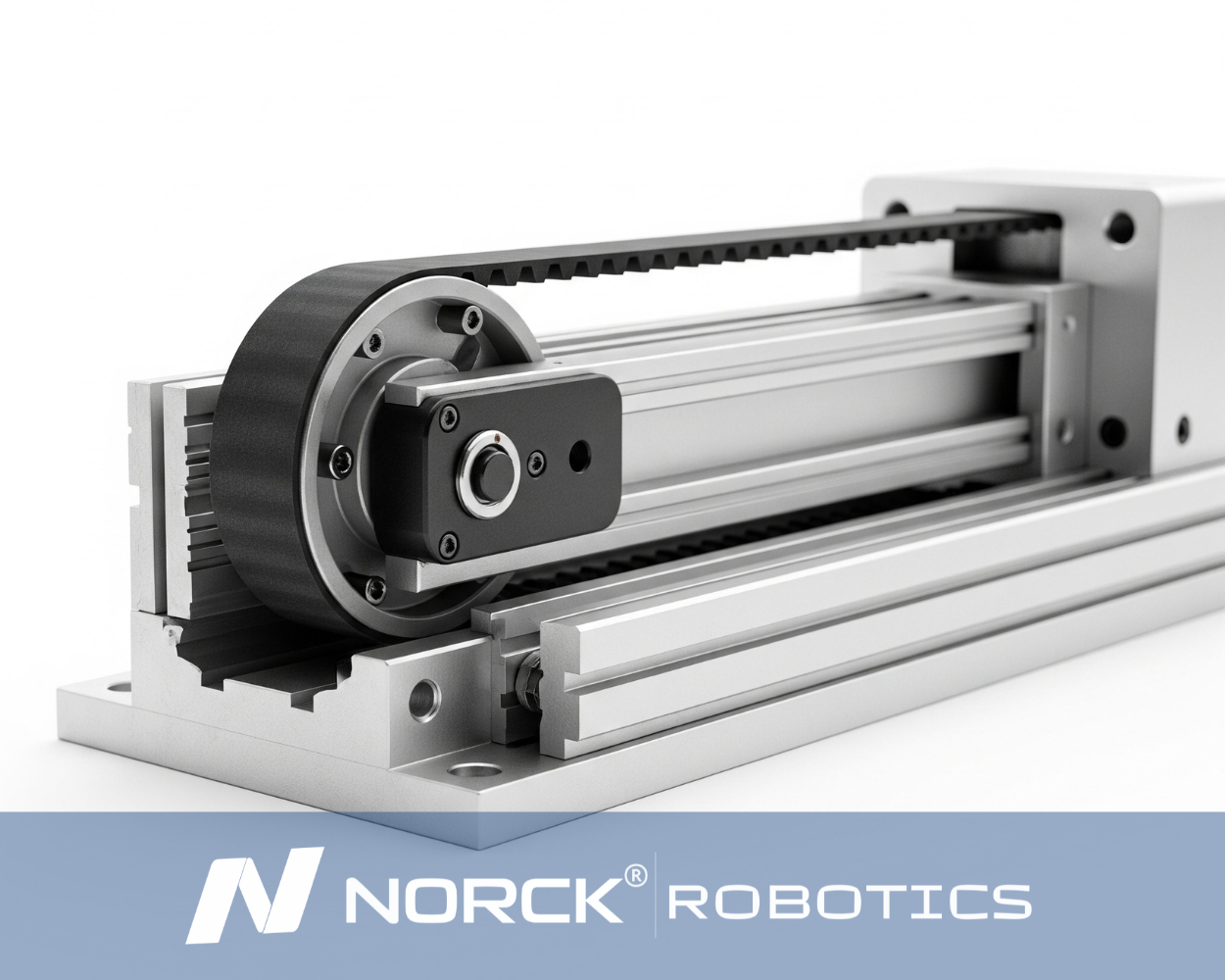

Belt-Driven Linear Module

A Belt-Driven Linear Module is a linear motion system that uses a timing belt and pulley mechanism to convert rotary motion into smooth, fast linear movement. It is widely used in automation applications where high speed, long stroke length, and cost efficiency are more important than extreme precision or heavy load capacity.

A belt driven linear actuator consists of a reinforced timing belt, drive and idler pulleys, a linear guide system, and a motor (servo or stepper). When the motor rotates the drive pulley, the belt moves along the axis, carrying the carriage or load with it in a controlled linear path.

A belt drive system generates linear motion by converting rotary motion from a motor into straight-line movement. This system uses a continuous looped belt, usually made of rubber or reinforced material, looped around at least two pulleys: one attached to a motor and one or more idler pulleys.

When the motor turns, the drive pulley is turned. Since the belt is looped on the pulley, it rotates together with the pulley. If the belt is fixed to any moving part of some module, such as a platform or a carriage, the part is simply pulled along by the path of the belt, thus creating linear motion.

This mechanism finds itself extensively being put to use in 3D printers, CNC-type machines, and conveyor systems due to its efficient, relatively quiet, and smooth operation over a defined distance.

Belt drives have some distinct advantages, which is responsible for their popularity in numerous mechanical and automation systems:

1) Lightweight:

In general, belt-drive systems weigh less than gear or chain systems. However, the belts themselves are manufactured using flexible materials such as rubber, polyurethane, or composites, therefore further reducing the overall weight of the machine. Thus, belt drives are better suited for applications that demand weight reduction, such as robotic systems or portable equipment.

2) High Speed:

Belt drives can be operated at quite high speeds with little vibration or noise. With less friction and no metal-on-metal contact as found in the chain or gear systems, belts can keep working as required under high motor rotations. Applications in which these features render the product ideal involve highly fast motions and extremely smooth operations, such as in 3D printing and automated production lines.

3) Long Range:

The other major advantage of belt drive systems is motion transfer over longer distances between components. Unlike gears, which need close-spaced assemblies, a belt system can function well over long distances without performance degradation. This means machine layout flexibility and an easier mechanical design for large or modular systems.

In terms of precision, reliability, and smoothness in linear movement, the above-mentioned Belt Driven Linear Module design would be appropriate for diverse automation applications. This module is particularly advantageous for the following usages:

• Material Handling and Conveying: This is perfect for any system which requires movement of a product or material from one point to another along an assembly or production line. It can carry heavy loads and run at high speeds, making it just what is required.
• Packaging Automation: They are the wonderful machines namely for applications packaging of packages or products automatically running through different stages of the whole packaging process.
• Robotic Systems: This design provides smooth linear motion for a specific path along which robots can be moved in robotic applications. Ideal for applications pick-and-place, assembly operations, or other robotic movements in which precision is required.
• Test Equipment And Inspection: In test stations where automatic setups need to position parts or products instantly to the view of sensors or cameras for inspection, accuracy and repeatability are achieved.

• Laboratory Automation: The system maybe an altogether new area of lab research in which the movement of samples or testing equipment is easily relocated as that in an automated lab where everything is routine in timing and consistency.
• CNC Machines: Belt driven linear actuator are also widely used in CNC machinery, where precise movements along a straight line are essential for accurate cutting, milling, or drilling processes.

This design provides a combination of durability, high speed, and low maintenance, making it a versatile solution for many industries seeking efficient and effective automation solutions.

When one compares belt-driven linear modules and screw-driven systems, it becomes evident that some of its major differences lie in load capacity and precision.

Load Capacity:

Belt-driven linear modules usually operate with either lighter or moderately heavy loads, thus their load capacities tend to be generally lower than those of screw-driven systems. For these applications, they are an advantage given weight is not a major concern.

Conversely, screw-driven systems make good use of the advantage of higher load capacities. In fact, they are well suited to applications where loads are moved with heavy force and stability. The screw drive, with its mechanical advantage, permits handling much heavier weights and operating under tremendous stresses.

Precision:

Where precision is concerned, belt-driven linear modules give fair accuracy but can encounter backlash due to the elasticity of the belt, which may experience some slip with heavy loads and high speeds; it shines in such applications where speed is more important than ultra-precise positioning.

On the other hand, screw-driven systems are more accurate because of their direct mechanical connection between screw and nut, leading to a negligible backlash and constant placement. Since CNC machines and high-precision test instruments used this accuracy, they were best recommended for applications requiring very high precision.

As a general rule, there is a higher speed at which belt modules can move lighter loads, whereas screw modules provide optimal performance for high load applications with better precision. It then stands to reason that the best choice is required by the specific physical characteristics of the particular case at hand, plus generally speaking the automation task to be performed, such as speed, load, and precision.

• High-speed travel: Great for long distance motion, with fast acceleration and deceleration.
• Low inertia: A lightweight system will improve pick-and-place and transfer operation efficiency.
• Minimal maintenance: The durable belt and low-friction guides will minimize unwanted fail time.
• Application-ready delivery: At Norck Robotics, we guarantee every belt-driven linear module is configured and tested for simple integration into your automation system.
• Smooth and quiet operation: Tensioned belt systems allow for reduced noise and vibration.
• Customizable length and drive: Each belt linear actuator belt driven can be configured for a specific stroke, mounting system, and motor.
